Side Injection Dual Working Stations Air Over Oil Cylinder Compact Machine

LPMS 2200H

Side Injection Dual Working Stations Air Over Oil Cylinder Compact Machine

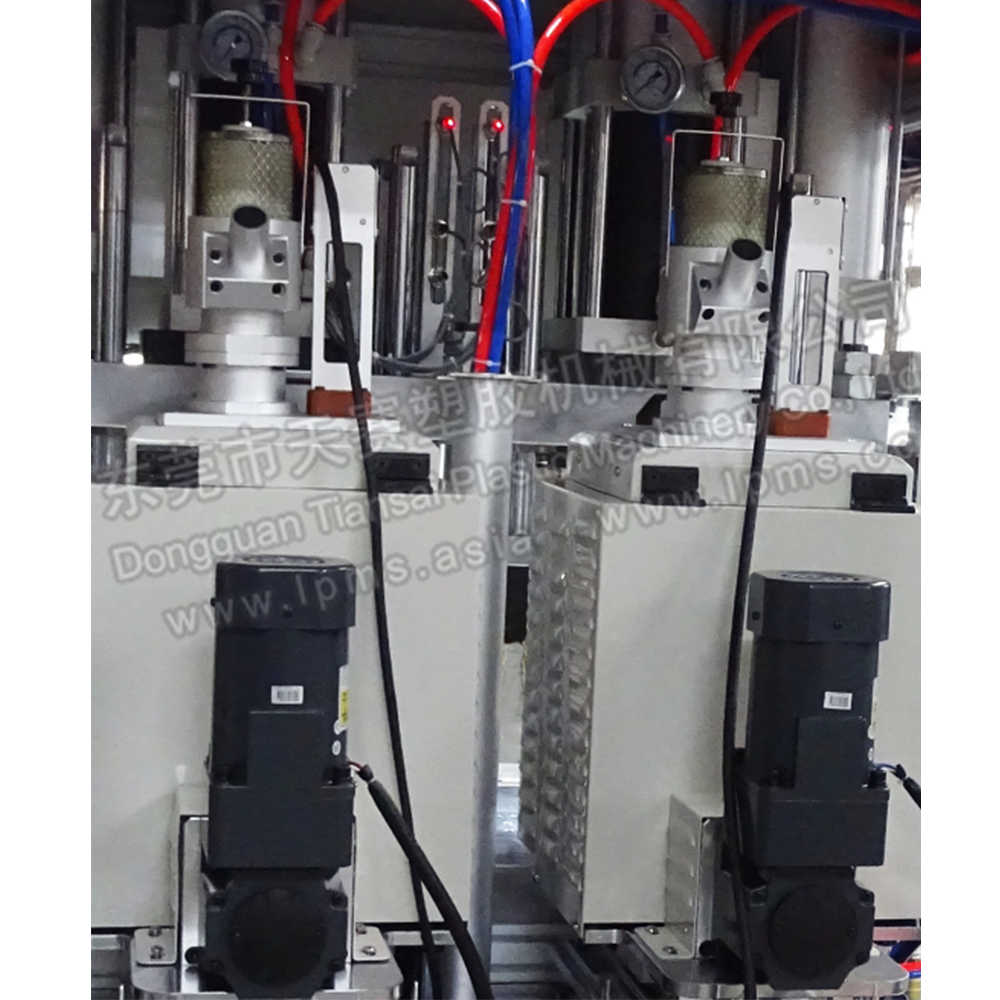

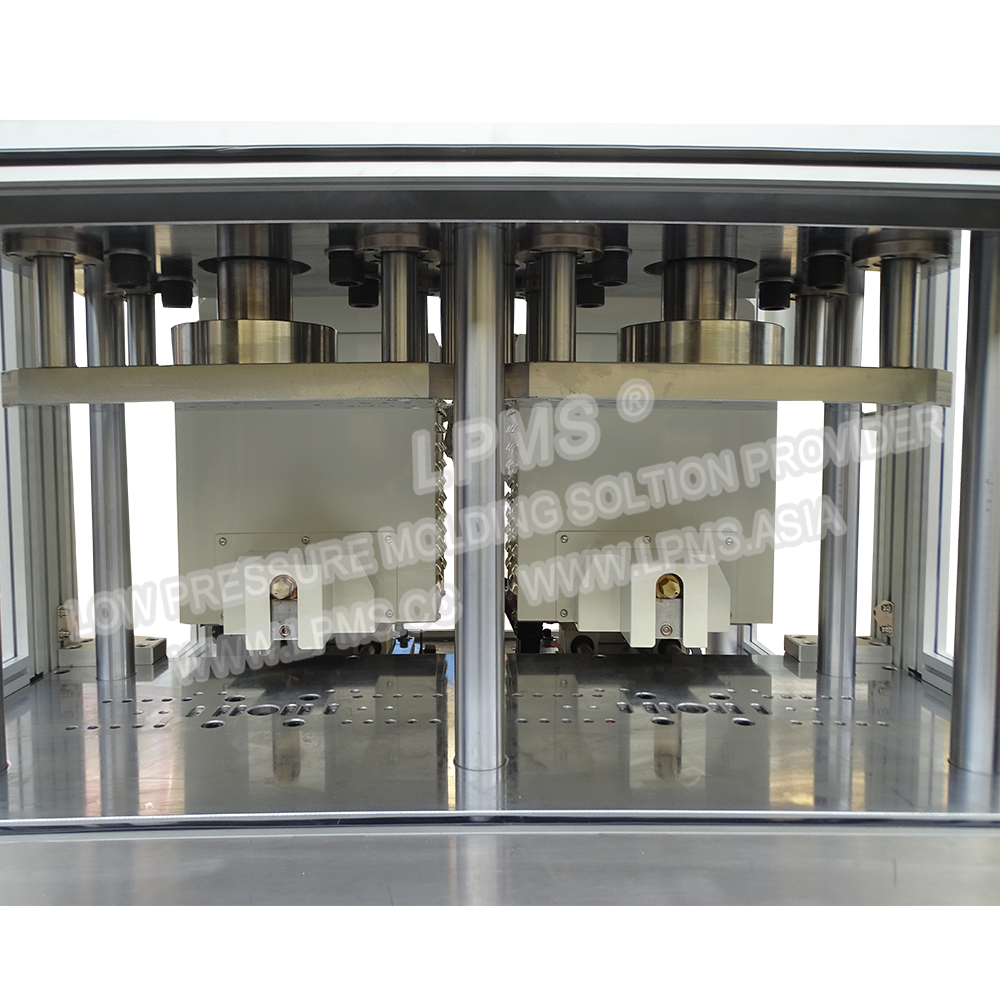

7 liters melting tank is integrated into the machine.
Side injection suitable for multiple cavity and large size part molding. Flexible from simple tools to complicated tools with slide blocks.
Dual tank is more stable and improves the productivity.
Melt-on-demand tank melts the resin within 18 minutes.
Air over oil cylinder gives larger clamp force for larger part.
Key components adopt modular design, easy for maintenance and change.
Four temperature control zones work independently. Over temperature alarm, automatic heating are included.
Two palm buttons and light curtain to protect the operator.
Ejection system is equipped.

Application

LPMS? machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

The benefits of side injection is that when one large cavity being encapsulated from the center of the mold, which can prevent the gate mark from the center of product.

Specification

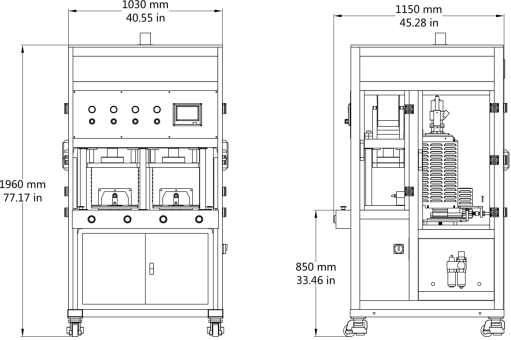

Machine Size / Weight	40.5 in x 45.28 in x 77.17 in / 1366 lbs
Footprint	40.5 in x 45.28 in
Working Station Height	850 mm \| 33.47 in
Packing Size / Weight	44.49 in x 49.21 in x 81.10 in / 1455 lbs
Melting Tank Model & Q'ty	LPMS-MOD-07-2200H-DSAF1 x2
Auto Feeding System	LPMS D10
Gun Model & Tip	LPMS-LG02 x 2 / 36.4°
Heated Hose Model & Q'ty	N/A
Electricity	200-240VAC / 1Phase / 50 or 60Hz
Temperature Control Zones	4
Temperature Range	Ambient up to 250℃
Max .Power	10 kw
Min. Air Pressure	0.5 Mpa
Air Consumption	0.18 m³/ min
Clamping	Air Over Oil Cylinder
Clamping Force	10 T
Clamping Stroke	150 mm
Control System	PLC+7 in HMI
Safety device	Light Curtain

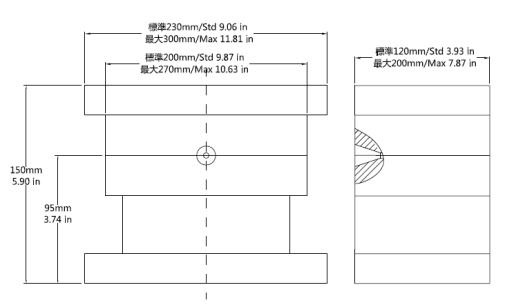

Mold Set Size	9.06 in x 4.72 in x5.91 in / 55 lbs
Max . Mold Set Size	11.81 in x 7.87 in x 5.90 in
Max . Part Size	2.36 in x 1.97 in x 0.71 in
